Godina proizvodnje: 2017
1. General Machine Data
Machines:
- Used Prima Power Shear Genius SGe 1530 Dynamic
- Used Prima Power Express Bender EBe5-3 (200) FM
- Used Prima Power Storage FL 1530 (H5.3)
Year of Manufacture: 2017

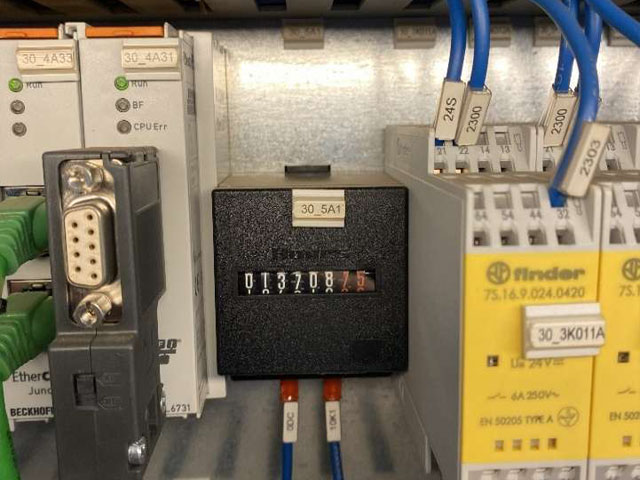

Operating Hours: approx. 13,700
Punching tools: Included
Programming software: Included
Availability: immediately
Machine Location: next to Leipzig / Germany
Condition:
The system is in mint condition with relatively low operating hours. The complete line is in perfect working order.

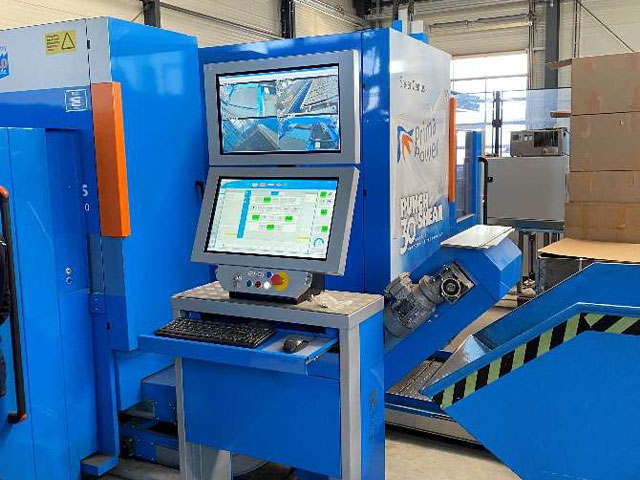

Advantages of the Finn-Power SGe 1530 Punching–Shearing Combination
The Prima-Power SGe 1530 combines high-performance punching with precise shearing in one highly productive system. It is ideally suited for flexible sheet metal manufacturing, offering short cycle times
and excellent material utilization.
2. Key advantages:
- 30 tons punching force for a wide range of materials
- Combination of punching and shearing in one machine
- High process reliability thanks to Automatic Cutting Gap Adjustment (ACS)
- Maximum flexibility through Programmable Clamps (PCS)
- Index and drop-in multi-tool with 360° rotatable tool station
- Processable sheet sizes up to 3,074 × 1,565 mm
- Robust design, high repeat accuracy, and minimal downtime
3. Equipment and Installed Options
• Performance Dynamic package
• Forming cylinder
• 30 tons punching force
• Automatic loading system (LD)
• Central lubrication system
• Conveyor belt for punching and shearing scrap
• Multi-tool station
• Automatic loading with sheet separation and double-sheet detection
• Tool lubrication
• Sheet metal lubrication
• Index multi-tool
• Drop-in multi-tool
• 360° rotatable tool station
• Freely adjustable clamps
• Programmable Clamps (PCS)
• Automatic Cutting Gap Adjustment (ACS)
• C1500 conveyor C1500/34.Turret Layout – SGe
Station Tool
1 MT1016
2 MT3B
3 MT6AU
4 MT4A
5 Bif
6 B
7 MT4B
8 B
9 Dif
10 C
11 DiF
12 C
13 Bif
14 B
15 Di
16 C
17 Bi
18 B
19 Cif
20 B

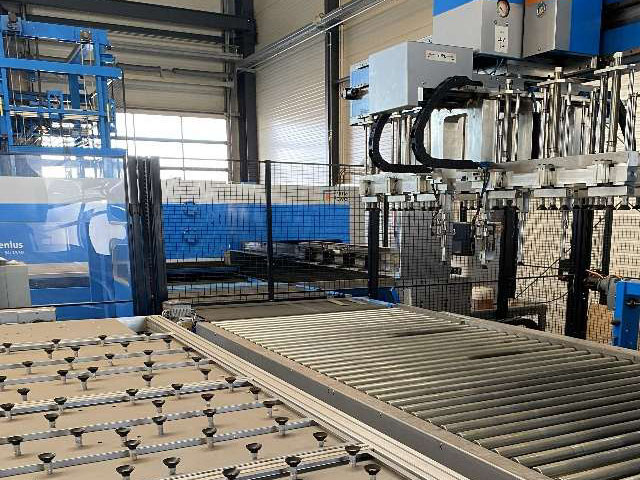

5. Technical Data – Storage FLD 1530 / FL Storage 1530
• Max. sheet size (X × Y): 3,074 × 1,565 mm
• Min. sheet size (X × Y): 600 × 300 mm
• Max. sheet thickness: 8 mm
• Min. sheet thickness: 0.5 mm
• Max. sheet weight: 200 kg
• Programmable suction zones: 14
• Number of suction cups: 46
• Max. sheet thickness for sheet separation: 4 mm
FL Storage H5.3:
• Total height (H): 5,325 mm
• Height of highest shelf position (h): 4,140 mm
• Maximum number of shelf levels: 6

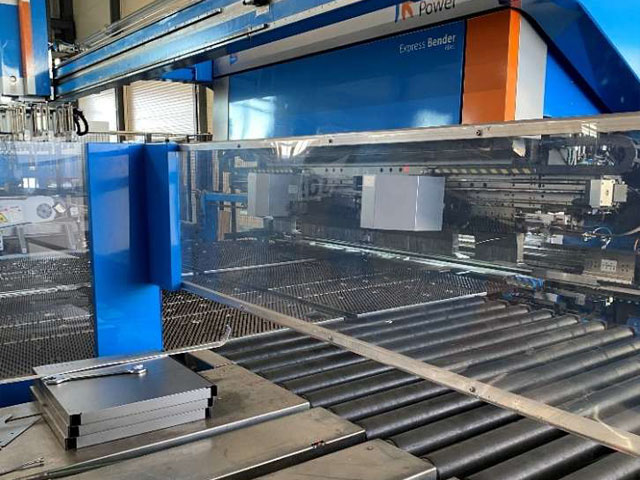

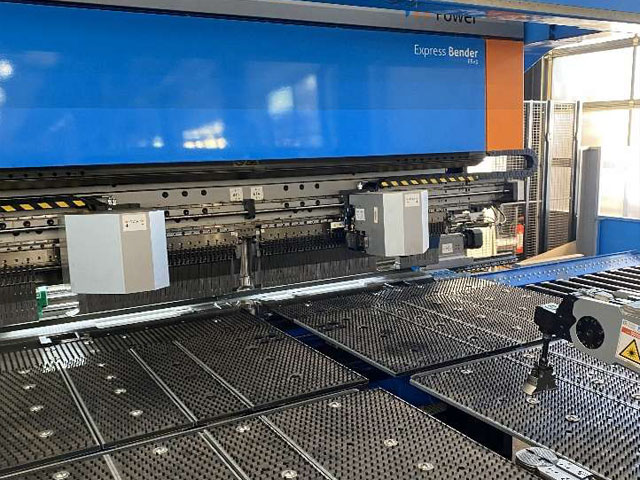

6.Technical Data – Express Bender EBe5-3 (200) FM
• Max. bending length: 2,750 mm
• Sheet length (min. – max.): 350 – 2,850 mm
• Sheet width (min. – max.): 180 – 1,500 mm
• Max. weight of loaded sheet: 101 kg
• Max. height of sheet stack: 220 mm
• Max. weight of sheet stack: 3,000 kg
• Bending force: 41 t (410 kN)
• Sheet holding force: 90 t (890 kN)
• Average power consumption: 13.5 kWh
• Voltage: 400 V (50–60 Hz)
• Compressed air pressure: 6 bar
• CNC Control: Prima Electro Open Control
Summary – Sales Highlight
The Prima Power PSBB line stands for automation in perfection and a seamless, intelligent material flow from sheet to finished part. The fully integrated combination of punching, shearing, bending and storage delivers maximum productivity with minimal manual intervention.
This high-end production line combines state-of-the-art automation with outstanding flexibility. Fast changeovers, smart tool technology and intelligent sheet handling allow efficient production of both small batches and high volumes — always with maximum precision and material efficiency.
A future-proof investment for companies that demand performance, flexibility and modern
manufacturing excellence.
